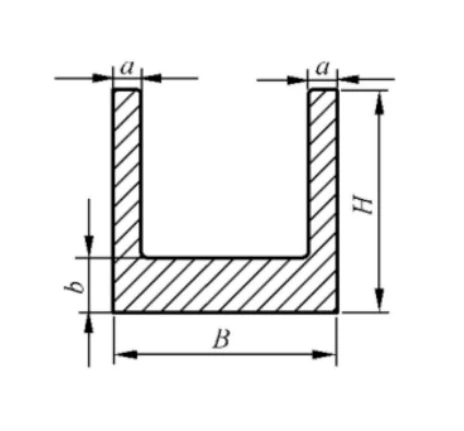

U-shaped Titanium Profile for Chemical Industry

• Superb Acid and Alkali Resistance: The titanium - based oxide film (TiO₂) remains stable in concentrated sulfuric acid (≥95%), hydrochloric acid (≤10%), nitric acid, organic acids (such as acetic acid and citric acid), and mixed corrosive media. Its corrosion resistance reaches the level of Hastelloy C276, and its service life is 8 - 10 times longer than that of 316L stainless steel.
• Special Formula for Reducing Acids: With the addition of 0.2% palladium in GR7 titanium material, the breakdown potential in non - oxidizing acids such as hydrochloric acid and hydrofluoric acid is increased to > 1.5V (ASTM G61), and the corrosion rate in a 60°C/10% HCl solution is less than 0.01 mm/year.

• Compatibility with High Temperatures and Pressures: The operating temperature ranges from - 50°C to 300°C. The tensile strength (≥345 MPa) and yield strength (≥275 MPa) remain over 90% at a high temperature of 200°C, meeting the requirements of the sealing frames of high - pressure reactors.

• Strong Acid Reaction Systems: Guide rails for PTA oxidation reactors (acetic acid + bromide medium, 220°C), support frames for titanium dioxide chlorination reactors (Cl₂ + high - temperature molten salt environment).
• Storage and Transportation of High - risk Media: Reinforcing ribs for concentrated sulfuric acid storage tanks (93% H₂SO₄, 80°C), fixing parts for hydrofluoric acid pipelines (HF gas, 0.5 MPa).
• Mixed Corrosive Environments: Frames for hydrometallurgical extraction tanks (H₂SO₄ + organic phase), sealing bases for petrochemical hydrogenation reactors (H₂S + high - temperature oil and gas).
• Environmental Protection Treatment Equipment: Structural beams for acidic wastewater treatment tanks (pH 1 - 3, containing 50000 ppm Cl⁻), high - temperature flue supports for VOCs incinerators.

Our Advantages

Our factory boasts a strong production capacity, with an annual output of up to 10,000 tons of comprehensive titanium products. Relying on professional and advanced production equipment, we can customize products of various sizes and specifications for you, fully meeting your diverse needs.

In the aspect of logistics and distribution, we have partnered with professional, safe, and reputable logistics companies to build an efficient logistics system. This ensures that your products can be delivered to the designated port promptly and accurately, so you don't have to worry about logistics timeliness.

Quality is the lifeline of our factory. We have established a complete internal quality manual and formulated strict process control procedures. Every link, from raw material procurement to product delivery, is carefully controlled to comprehensively ensure that the product quality meets or even exceeds your standard requirements.

In case of any unfortunate product quality issues, you don't need to worry. We have a professional after-sales team providing 24-hour uninterrupted service. They will respond to your needs at any time and quickly solve the problems for you, leaving you with no worries.
